For High Acid Aseptic and Low Acid Extended Shelf Life (ESL) Liquid Products

Filling equipment for flexible bags with a fully enclosed fill chamber for filling irradiated bags under sterile conditions for Bag-in-Box applications.

Applications

The Sterikap filling technology is designed to fill both high and low acid products in a sterile environment:

  • Low acid – milk, ice cream mix, milk shake bases, sauces
  • High acid – aseptic juices, fruit and vegetable purees

Benefits of Sterikap filling machines:

  • Easy operator interface
  • Fully enclosed fill chamber, providing sterility during production with a combination of steam, sterilant water and/or sterile air
  • Easy to install system with only steam, compressed air and single-phase power
  • Compatible with a large range of fitments, caps and dispensers
  • Quick and simple bag size changes
  • Cleaned in place/steamed in place (CIP/SIP)
  • Compact size

Rapak fillers have been designed to USA 3A, FDA and European Hygienic Engineering & Design Group (EHEDG) standards and comply with EU Health and Safety work acts. Noise level is under 80 decibels.

View our range of Sterikap Filling Machines:

autokap1200 carousel

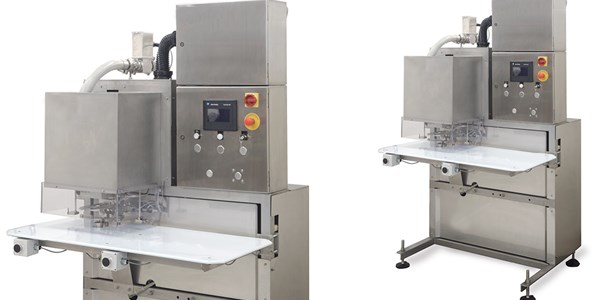

Sterikap 800 Series Single-Head Semi-Automatic Filler

The filler is designed to fill 1.5 - 20 L (0.5 - 5 gal.) bags at a lower production output.  Bags are manually loaded into the filler and after filling, they are released to a table or onto the roller conveyor to be inserted into the box.  The fill chamber and all product lines are automatically cleaned in place (CIP) and sterilized in place (SIP) after each production run.

Production output*

  • 3L (1 gal.) at up to 5 bags/min
  • 5L (1.5 gal.) bags at up 4 bags/min
  • 10L (2.5 gal.) bags at up to 3 bags/min

*All outputs are based on filling water at a flow rate of 6 liters/sec (90 gallons/min). Filling rate is dependent on product supply conditions.

autokap1200 carousel

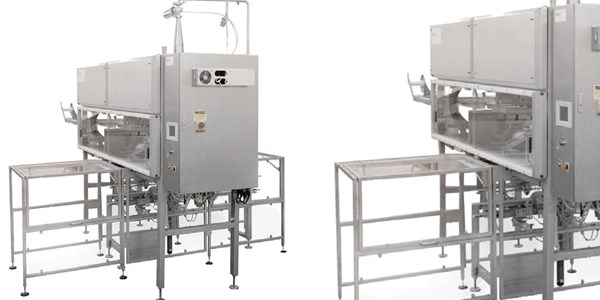

Sterikap 1600 Series Single-Head Fully-Automatic Filler

This high-speed filler is designed to fill and automatically load 1.5 - 20 L (0.5 - 5 gal.) bags into boxes. The fill chamber and all product lines are automatically cleaned in place (CIP) and sterilized in place (SIP) after each production run. It is servo driven for better accuracy.

Production output*

  • 3L (1 gal.) at up to 11 bags/min
  • 5L (1.5 gal.) bags at up 9 bags/min
  • 10L (2.5 gal.) bags at up to 8 bags/min

*All outputs are based on filling water at a flow rate of 6 liters/sec (90 gallons/min). Filling rate is dependent on product supply conditions.
