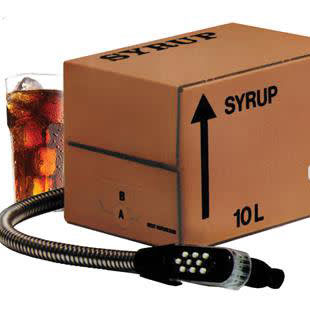

Bag-in-Box packaging for dispensing fountain drinks with Rapak’s high quality bags and line-side connectors ensures soft drinks are served quickly, safely and economically without leaks or spills.

Why is Bag-in-Box for Post-Mix a better option?

Product Preservation

  • Maintain safety and freshness by protecting against exposure to air

Storage & Logistics

  • Easier and more efficient storage and easy to transport

Handling

  • Works in any dispensing system
  • Reduce product waste with high portion yield
  • User-friendly packaging and dispensing

Environmental

  • 100% recyclable box

Bags and Films for Post-Mix Bag-in-Box

Rapak’s high quality bags and connectors ensure every drop of post-mix syrup is dispensed from the bag without leaks or spills. Rapak offers a wide range of film options for post-mix including METPET, EVOH with PE and Biaxially-oriented Nylon (BON) laminated structures.  Rapak bags are available in 7, 10L, 12 and 20L (3G and 5G) with custom sizing options available.

All our products are EU and FDA approved for direct food contact and free from phthalates, heavy metals and Bisphenol A.

Recommended durable bags for Post-Mix dispensing that can reliably survive a 40” drop test:

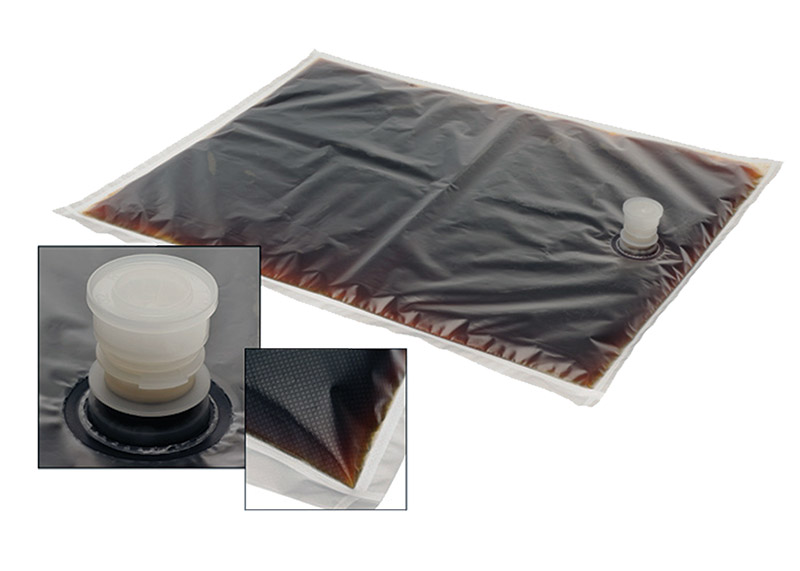

DuraBev™ Bags: Highly puncture resistant embossed film bag, featuring evacuation performance in excess of 99.4%

durabev group transp

New!
EvacuStrip™ Bags:
 Dip strip technology bag, with evacuation at any Bag-in-Box orientation, including vertically situated boxes with evacuation at the topof the box. Evacuation performance in excess of 99.6%.

Evacustrip ContentImage NEW

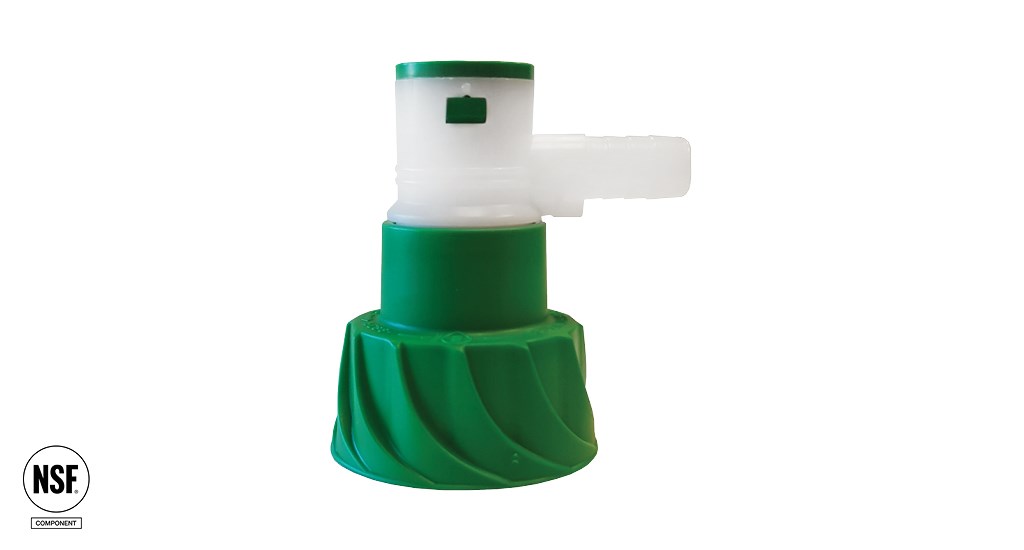

Line Side Connectors and Fitments for Post-Mix Syrup

Rapak offers universal fitments and line-side connectors to easily and effectively dispense post-mix syrup into soft drink fountain machines.

View the embedded image gallery online at:
https://rapak.com/markets/beverage/post-mix#sigProIdaa2e6ac406

Filling Machines for Post Mix

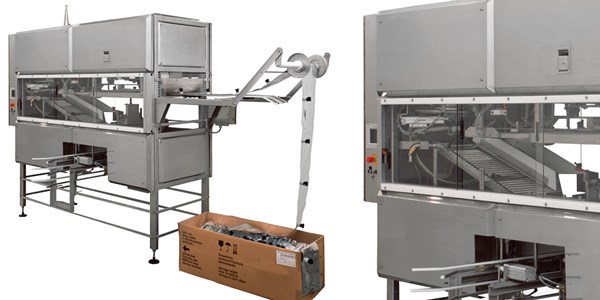

autokap1200 carousel

Autokap™ 600 Single-Head Semi-Automatic Filling Machine

This filler is designed to fill 1.5 - 20 L (0.5 - 5 gal.) bags at a lower production output. Bags are manually loaded into the filler and after filling, they are released to a table or onto the roller conveyor to be inserted into the box.

Production output*

  • 5L (0.5 gal.) bags at up to 9 bags/min
  • 3L (1 gal.) at up to 8 bags/min
  • 5L (1.5 gal.) bags at up 7 bags/min
  • 10L (2.5 gal.) bags at up to 6 bags/min
  • 20L (5 gal.) bags at up to 5 bags/min

*All outputs are based on filling water at a flow rate of 6 liters/sec (90 gallons/min). Filling rate is dependent on product supply conditions.

autokap1200 carousel

Autokap™ 900 Twin-Head Semi-Automatic Filling Machine

This filler is designed to fill 1.5 - 20 L (0.5 - 5 gal.) bags . Bags are manually loaded into the filler and after filling, they are released to a table or onto the roller conveyor to be inserted into the box.

Production output*

  • 5L (0.5 gal.) bags at up to 11bags/min
  • 3L (1 gal.)   bags at up to 10 bags/min
  • 5L (1.5 gal.)   bags at up 9 bags/min
  • 10L (2.5 gal.)   bags at up to 8 bags/min
  • 20L (5 gal.)   bags at up to 7 bags/min

*All outputs are based on filling water at a flow rate of 6 liters/sec (90 gallons/min). Filling rate is dependent on product supply conditions.

autokap1200 carousel

Autokap™ 1200 Single-Head Fully-Automatic Filling Machine

This high-speed filler is designed to fill 1.5 - 20 L (0.5 - 5 gal.) bags. It can be integrated to the production line with automatic carton erection and sealing, check weighers and palletizers. It is servo driven for better accuracy.

Production output*

  • 5L (0.5 gal.) bags at up to 17 bags/min
  • 3L (1 gal.)  bags at up to 16 bags/min
  • 5L (1.5 gal.)  bags at up to 14 bags/min
  • 10L (2.5 gal.)  bags at up 11 bags/min
  • 20L (5 gal.)  bags at up to 9 bags/min

*All outputs are based on filling water at a flow rate of 6 liters/sec (90 gallons/min). Filling rate is dependent on product supply conditions.

autokap1200 carousel

Autokap™ 1400 Single-Head Fully-Automatic Filling Machine

This high-speed filler is designed to fill and automatically load 1.5 - 20 L (0.5 - 5 gal.) bags into boxes. It can be fully integrated to the production line with automatic carton erection and sealing, check weighers and palletizers. It is pneumatic driven.  Bags are fed into the machine spout trailing.

Production output*

  • 5L (0.5 gal.) bags at up to 19 bags/min
  • 3L (1 gal.) at up to 18 bags/min
  • 5L (1.5 gal.) bags at up 15 bags/min
  • 10L (2.5 gal.) bags at up to 11 bags/min
  • 20L (5 gal.) bags at up to 8 bags/min

*All outputs are based on filling water at a flow rate of 6 liters/sec (90 gallons/min). Filling rate is dependent on product supply conditions.

autokap1200 carousel

Autokap™ 1700 Single-head, Fully Automatic Filling Machine

This high-speed filler is designed to fill and automatically load 1.5 - 20 L (0.5 - 5 gal.) bags into boxes. The 1700 incorporates features of Rapak’s two most popular filling machines - the Autokap 1200 and 1400 series:

  • Fixed fill head - keeps the bag stationary during the filling process, reducing product splash and strain on the bag spout seal
  • Accepts bags spout leading with a servo drive bag infeed system, allowing for precise bag positioning

Production output*

  • 5L (0.5 gal.) bags at up to 19 bags/min
  • 3L (1 gal.) at up to 18 bags/min
  • 5L (1.5 gal.) bags at up 16 bags/min
  • 10L (2.5 gal.) bags at up to 13 bags/min
  • 20L (5 gal.) bags at up to 11 bags/min

*All outputs are based on filling water at a flow rate of 6 liters/sec (90 gallons/min). Filling rate is dependent on product supply conditions.

autokap1200 carousel

Autokap™ 1900 Single-head Semi-automatic Bulk Filling Machine

This filler is designed to fill drums or bulk containers ranging from 30G up to 1000L. It is equipped with a Micro Motion mass flowmeter that ensures precise fill weights during the fill process. The 1900 is ideal for filling hot and ambient temperature viscous products such as pulpy juice, sauces or purees with particulate as large as 5/8” in size.

Production output*

  • 200L bags at up to 18 bags/hr
  • 1000L bags at up to 4 bags/hr

*All outputs are based on filling water at a flow rate of 6 liters/sec (90 gallons/min). Filling rate is dependent on product supply conditions.

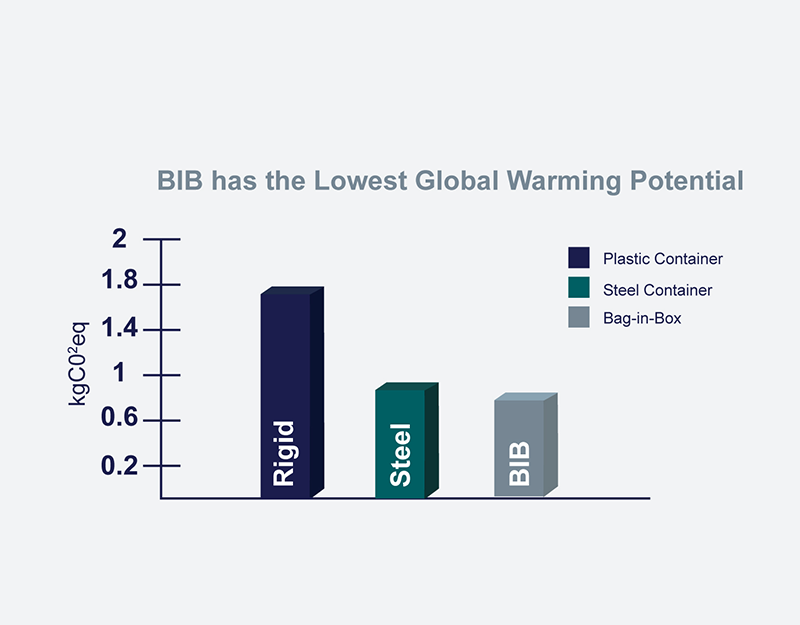

Bag-in-Box, a more sustainable packaging option

Bag-in-Box is a more sustainable alternative to other forms of packaging, enabling carbon reductions, cost savings and efficiencies in our customers’ supply chains. Bag-in-Box has excellent environmental credentials as it is easier to transfer, store and dispose of in regular waste collections.

bag in box for postmix
